Archival Review of Mavic Front Derailleur

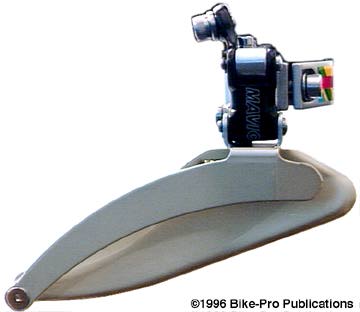

MAVIC 875 MOUNTAIN FRONT DERAILLEUR

Mavic has always had the reputation of building bike parts without compromise to just one set of high standards. They have never adopted a "second best way". This front derailleur isn't an exception. It uses the pantagraph lift and push style of the other fronts, so it smoothly transfers the chain back and forth. It is made in a clamp style only, and Mavic has figured out a clever way to address multiple clamp sizes. The cast aluminum clamp pieces are made to create a 34.3mm opening, inside of which a firm plastic ring slips. The derailleur comes with three rings, each is a different thickness that make each a different inner diameter. The ring slips around the seat tube, and the derailleur bolts around the ring. You are provided rings to fit, 1 1/8", 1 1/4" and 1 3/8" seat tubes. Another benefit of this thinking, is if you ever change frames, and the new one has a different seat tube diameter, purchasing a new front derailleur will be unnecessary. The clamp section is made of hard anodized aluminum, while the pivot links are Black painted aluminum, with the Mavic logo laser etched in the side. The cage on the derailleur is case hardened steel with a matte chrome finish. There are cut-outs on the inner side of the cage to reduce the weight. Set screws are placed on the top. A real virtue of this derailleur is that every part of it can be disassembled, nothing is riveted, this is unique, among all the fronts we sell. Mavic parts should they ever fail, are made to be repaired, and replacement parts are available. It can't be overstated this should be the last front derailleur you ever have to buy. The cage can be opened at the rear by removing a bolt and spacer, so the derailleur can be removed from the bike without having to break the chain. Intended for triple chainring cranks. With the 1 1/8" clamp, the 875 weighs 128 grams. This is not available in a top pull style. The cable fastening and the clamp bolt have the same thread and approximate length. These steel bolts can be replaced with Titanium models using the SRP Ti cable fastening bolt. The 875 is no longer made but sold for $89.99. We include it here because the subsequent reviews build on this information.
