Cinelli Drop Handlebars

CINELLI 64 - GIRO D'ITALIA

The Cinelli model 64, also known as the Giro D'Italia is the shallowest drop of the three Cinelli road bars. At the tubing end, it has a 24.2mm outer diameter and a 1.7mm wall thickness. Like many bars, the wall thickness will vary, between the ends, because of bends and bulges. A sleeve is used to build the bar center diameter out to the Cinelli 26.4mm. The sleeve covers the centermost 119mm of the bar and at its center has a 40mm length of knurls for the to stem to grip. The straight area of the top section is 250mm long. A groove is pressed into the front face of the top section of the bar, and extends through the forward bend. This groove is to recess the brake and shift cable if an aerodynamic brake/shift lever is used. The drop measures 138mm center to center. The lower flat section of the drop measures about 4.25" (110mm). The Giro D'Italia is Clear anodized leaving it a Silver color and available in four widths, 38- cm, 40 cm, 42 cm, or 44 cm. The 42 cm model weighs 311.5 grams. Made in Italy.

Width-38-40-42-44 $ Price in Catalog

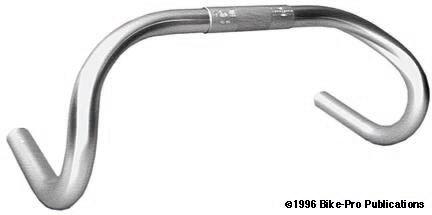

CINELLI 65 - CRITERIUM

The model 65 also known as the Criterium, is made using the same tubing as the 64. At the ends, its O.D. is 24.2mm and its wall thickness is 1.7mm. The thickness will vary between the ends based on bends and bulges in the bar. The 65 uses a 100mm long sleeve to build its outer diameter up to the 26.4mm diameter used in a Cinelli stem. The centermost 40mm of the sleeve is knurled for the stem to grip. One of the chief differences between the 65 and the other two Cinelli bars we sell, is the short length of the top section which is just 165mm (6 1/2") long, before each side sweeps into its forward curve. The front face of the forward curve has a groove to recess the brake and shift cables should an aerodynamic brake/shift levers be used. The 65 has a 144mm drop, with the lower flat section being approximately 4.25" long. The 65 is Clear anodized leaving the bar a Silver color and is available in three widths 40 cm, 42 cm, or 44cm. The weight of the 42 cm width Criterium is 313 grams. Made in Italy.

Width-40-42-44 $ Price in Catalog

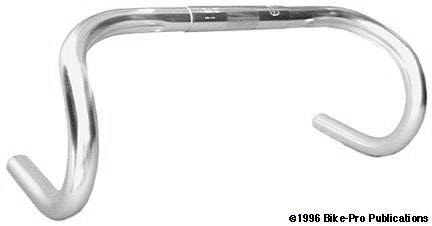

CINELLI 66 CAMPIONE DEL MONDO

The model 66 is the deeper drop of the two standard drop bars (64 & 66), and it's not that deeper. At the tubing end, it has a 24.0mm outer diameter and a 1.59mm wall thickness. The wall thickness will vary between the ends, because of bends and bulges in the bar. A 119mm long sleeve at the center of the bar builds out its diameter out to the 26.4mm needed for Cinelli stems. The centermost 39mm of the sleeve is knurled to give the stem additional grip. The straight area of the top section is 250mm long. The front face of the bar's top section and the forward curve has a groove pressed into it. This trough is to recess the brake/shift cables if Aero brake/shift levers are used. The drop, center to center, of the 66 is 158mm and the length of the flat is about 4.5" (115mm). The 66 is Clear anodized to a Silver color and available in three widths 40 cm, 42 cm, or 44. The weight of a 42 cm version of the 66 is 332.5 grams. Made in Italy.

Width-40-42-44 $ Price in Catalog
