Shimano Bottom Bracket


In 1992, Shimano released their sealed bearing cartridge bottom brackets for use with their road and mountain bike parts groups, this is the "UN" series of bottom brackets. The three, and the added Dura-Ace 7410 model, have some variations in their appearance and weights. The quality differences in terms of materials used, tolerances manufactured to or bearings used are less discernible.

We called Shimano headquarters in Irvine, California to ask how they differ. Robert explained that the more expensive models are made of better steel and bearings. We asked how, what type of steel is used for each, and how or what type of bearings are used for each, so we could explain to customers why they should buy one over the other. Robert said that this information was "product confidential". When we asked if the spindle or bearings could be changed individually if they should fail, he explained that there are no user or mechanic serviceable parts in the UN series bottom brackets.

The assembly is warranted by Shimano for up to one year from the original purchase, a customer sending a defective unit to them would receive a new exchange for the defective B/B. For all other specifics he referred us to the Dealer's Product Manual, which frankly has nothing specific related to the components, or materials, though it tells available spindle lengths. All we can tell you is what we observe about each.

The bearings used on both sides of all three, are labeled "HIC" and "JAPAN". They, frankly, appear to be the same bearings in all three, and they all "feel" as though they have the same bearings. Ultimately, we ripped apart a UN-50, (the predecessor to the UN-51) to examine the bearing assembly and learned that the term "sealed cartridge", which is Shimano's term, isn't quite an accurate euphemism for "precision sealed cartridge bearing". The UN-50, when you removed the outer rubberized seals around an aluminum washer, revealed seven approximately 4.5mm diameter steel balls in a plastic retainer. With both outer seals removed, you can look straight through the B/B unit. These outer plastic seals, and their integrity, like those used in the Tioga MTB-SK, are all that keeps the outer world shielded from the inner 7 steel balls. The UN-51, UN-71, UN-91 and the DA 7410 B/B all outwardly appear to have the same bearings as the UN-50 we tore apart for inspection.

Shimano has created a special tool for installing these B/B's. The same tool is used to tighten the right cup, (which is fastened permanently to the sealed unit's core), as well as for installing and tightening the left cup into position. The Park BBT-2 or the Shimano TL-UN72 are the only known tools that securely seat the cups. The TL-UN72 was included with the UN-90 B/B, which was the UN-90's predecessor. As the Japanese yen has gained strength against the US dollar ,the included, seemingly free tool was removed to keep the B/B affordable. Buying or borrowing one of these tools will be requisite to installation under warranty.

The 1994 Shimano XT, LX, and STX Compact crank models are all Super Low Profile models. Super Low Profile triple cranks should use either a 113mm or a 118mm spindle instead of the traditional 122mm or 127mm spindle length. SLP double cranks, Dura-Ace or 105SC/RX100 should use a 103mm or 107mm instead of the traditional 115mm. Regarding oversized seat tubes, keep in mind that a larger diameter seat tube moves farther out to the right, away from the frame, on the drive side of the front derailleur cage. This will require the chainrings also be spaced farther away from the frame by using a longer spindle.

The included Shimano table shows the different possibilities of UN series B/B's with spindle lengths, shell widths, and weights, if we could source a specimen.

Now, the specifics about the B/B's as we see them.

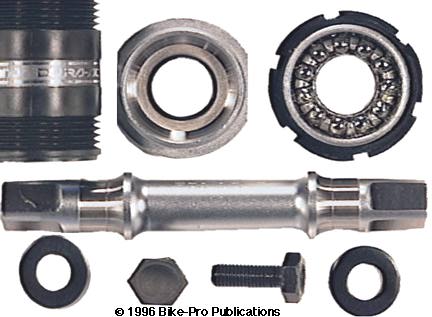

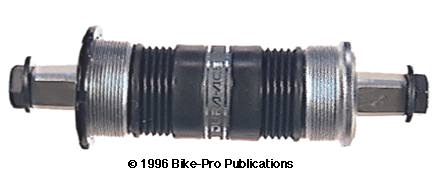

The 7410 B/B was introduced in 1993 to coincide with the release of the SG-X chainring and the HyperDrive compatible Dura-Ace crankset. This UN series style "sealed cartridge unit" B/B honestly looks like a "down-sized", short spindled version of the UN-91. It's component parts look identical to those used in the UN-91 with the exception of the spindle.

The spindle again appears to be cast, then machined to perfect it's surface. It is just 103mm long because the tapered area of the spindle is shorter and the crank rests closer to the B/B shell. The right bearing cup is made of machined Silver aluminum and permanently pressed onto the right side of the central core of the unit. The middle of the sealed unit is made of steel and reduced in diameter on a lathe to just 26.7mm like the UN-91 B/B. The left cup is machined of Silver colored aluminum.

The spindle, like the UN-91 is hollow with the interior of the ends tapped with threads for the crank bolts, but crank bolts aren't included because the Dura-Ace crankset comes with them. Using this B/B with other cranks will require these bolts, a selection of which are found in the crank section of this book. The 7410 B/B does not come with the required TL-UN72 installation/removal tool. The U.S. made Park BBT2 is recommended, and found toward the end of this section.

The 7410 B/B is available in English threads only, in a 103mm spindle lengths. The 7401 B/B with weighs 209.5 grams. $Price in Catalog
