SRP makes a direct Titanium replacement for the steel cinch bolts used in the now discontinued Onza MT-04A and MT-74A bar ends, as well as the presently made Tioga short and long Power Studs. The SRP bolt is machined from Ti 6Al 4V rod with rolled 6mm x 1mm thread pitch, with a 5mm allen head fitting. The weight of the steel original is 7 1/2 grams, while the SRP replacement weighs just 3 grams. These bolts are sold in pairs. pair Price in Catalog
SRP makes a direct Titanium replacement for the 6mm x 1mm pitch steel cinch bolts used in many bar ends. The SRP bolt is machined from Ti 6Al 4V rod with rolled 6mm x 1mm thread pitch, with a 5mm hex head fitting. This bolt is available in two lengths, 12.7mm long or 20mm long The weight of the 20mm long steel original is 6 grams, while the SRP replacement weighs just 3 1/2 grams, the 12.7mm long Ti bolt weighs 3 grams. For the WTB Hammer Handles SRP makes a 5mm x .8mm thread pitch, that is 20mm long with a 4mm hex head fitting, weighing 2.3 grams. The 20mm long cinch bolts are used on the Answer Hyperends XC, Hill Bend, and Guardian models, Flite Rocket, Dewey, Dewey 2, Dewey Titanium, both types of Mountain Goat Granola Bars, Onza MT-02R, Onza MT-72R, Onza MT-74A, Onza RAW 110, Onza RAW 140, Profile XC Sierra Short and Long, Salsa Mango D'amour, Scott ATNZ-LF Short and Long, and Specialized Dirt Rodz II. The 12.7mm long cinch bolt can used with the Control Lite 1, Control Lite 2, and Control Team Issue, Onza RCR 160, Onza RCR 200, and Ritchey Long, Medium, or Short bar ends. Price in Catalog
Syncros machines from 6061 aluminum rod handlebar end plugs to reinforce thin or tapered walled handlebars against crimping from cinch clamp assemblies. The outer diameter to fit in the bar is .775 inches with an insertion depth into the bar of 1/2". A pair weighs 11 grams. No longer made.

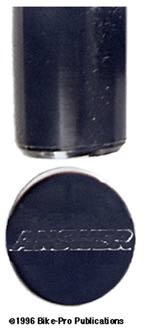

Answer molds with interior reinforcement, of Black plastic, bar end plugs to reinforce handlebars. The outer diameter to fit in the bar is .81 inches with an insertion depth into the bar of 1". A pair weighs 11 grams. Price in Catalog
